DG4
10090000001

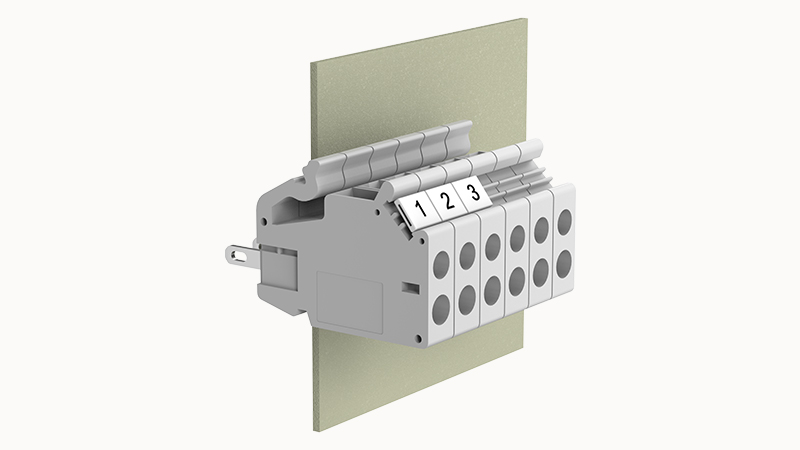

Through-wall terminal blocks,Rated current:24A.Rated voltage (III/2):400V,Width:6.1mm,Color:gray,Contact surface :Tin

colour
Poles
  1. 01P
대비

제품 타입

매번 마다 4개제품 대비가능함. 대체할 제품 선택 부탁 드립니다.

    • 종람
    • 기술 데이터
    • 악세사리
    • 인증
    • 비즈니스 데이터
    • 다운 로드

    제품 장점

    ☑ Screw connection technology,safe and reliable
    ☑ Through-wall installation, free positioning
    1. 3D
    2. Connection capacity
    3. Electrical parameters UL
    4. Electrical parameters IEC
    5. Item properties
    6. Material data
    7. Mechanical tests
    8. Environmental data

    3D

    Connection capacity

    Conductor cross section solid0.2~4mm²
    Conductor cross section flexible0.2~4.0mm²
    AWG30~10AWG
    Torque0.5N.m
    Strip length6mm

    Electrical parameters UL

    Rated voltage (B)300V
    Rated voltage (D)300V
    Rated current (B)20A
    Rated current (D)10A

    Electrical parameters IEC

    Rated current
    24A
    Rated current(III/2)400V
    Rated surge voltage(III/2)2.5KV

    Item properties

    Type of installationpanel
    Connection methodScrew connection
    ScrewdriverSlotted screwdriver
    screw threadM3
    Pitch6.1mm
    Number of potentials1
    Pluggable or notno
    Number of rows1

    Material data

    Environmental itemsCompliant with REACH/RoHS
    Contact materialcopper
    Contact point metal surfacetin-plated
    Insulation MaterialsPA66
    Insulating material group
    Flammability ratingUL94V-0

    Mechanical tests

    Test SpecificationIEC60947/UL1059

    Environmental data

    Ambient temperature (operation)-40℃~105℃
    1. Accessories
    2. Tool

    Accessories

    Coding strip /
    Bridge /
    Marking strip /
    Others /

    Tool

    Operating tool /
    Screwdriver /

    VDE parameters

    Overvoltage category/Degree of pollution III/3 III/2 II/2
    Rated voltage / 400V /
    Rated current / 24A /
    Cross section / 0.2~4 /

    UL parameters

    Use group B C D
    Rated voltage 300V / 300V
    Rated current 20A / 10A
    AWG 30~10 / 30~10
    발주 번호 10090000001
    포장 단위 120
    MOQ 30
    제품 무계 (포장 제외) 4.7
    3D
    DG4-01P-1Y-00A(H).stp 다운 로드
    CAD Data
    DG4-01P-11-00A(H)-T0.dxf 다운 로드
    Data
    DG4-01P-11-00A(H)-T0-l.pdf 다운 로드
